ST forging steel globe valve is forged from high quality materials, which can withstand great impact force and has higher plasticity, toughness and other mechanical properties than steel casting.
Forged steel globe valves are generally not larger than DN80 in diameter and are mostly designed with reduced diameter. Compared with cast steel globe valves of the same diameter, the flow rate is slightly lower, but the pressure and temperature range is higher than that of cast steel, with good sealing performance and long service life.
As with other globe valves, the flow direction of the medium to be limited.

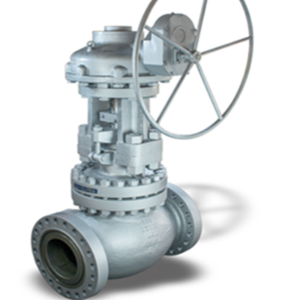

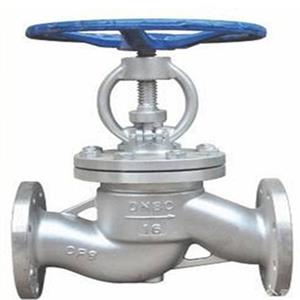

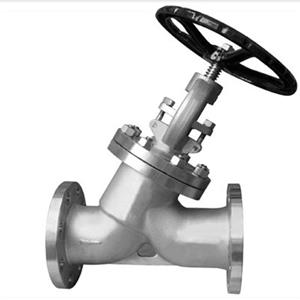

Forged steel globe valves can be divided into forged steel T-type globe valves and forged steel Y-type globe valves according to the different installation locations.
Structural features:
1. Forged from high quality materials
2. There are three bonnet designs: bolted bonnet, welded bonnet and pressure self-tightening bonnet
(1) : Bolted bonnet, valve designed in this form, having a body and bonnet connected by bolts and nuts, sealed with a wound gasket (made of 316 flexible graphite clamps).Customers with special requirements can also use metal ring connection.
(2) : Welded bonnet, designed in this form of valve with a body threaded to the bonnet and fully welded seal.Customers with special requirements can also use full welding connection.
(3)900lb, 1500lb, 2500lb and 4500lb cavities adopt pressure self-tightening sealing structure, the sealing performance increases with the increase of internal pressure, and the reliability is high
3, the sealing surface is not easy to wear and scratch, good sealing performance, no relative sliding between the valve disc and valve body sealing surface when opening and closing, long service life
4, the use of flexible graphite packing, reliable sealing, light and flexible operation
5, the globe valve medium can only flow in one direction, can not change the flow direction.Pay attention to the medium flow direction and valve body arrow direction during installation
Design specification:
Design standard: BS 1873, ASME B16.34, GB/T 12235
Structure length: ASME B16.10, GB/T 12221
Connection standard: ASME B16.5, GB/T 9113, JB/T 79, HG/T 20592, JB/T 9092
Pressure test: API 598, GB/T 13927, GB/T 26480, JB/T 9092
Pressure and temperature classes: ASME B16.34, GB/T 12224
Performance parameters:
Main material: carbon steel, stainless steel, alloy steel
Nominal size: NPS 1/4"~NPS3" DN6~DN80
Pressure range: CL150~CL4500 PN10~PN760
Operating temperature: -196℃~+600℃
Application: tap water, sewage, construction, food, electric power, medicine, metallurgy, light textile, energy system, etc
