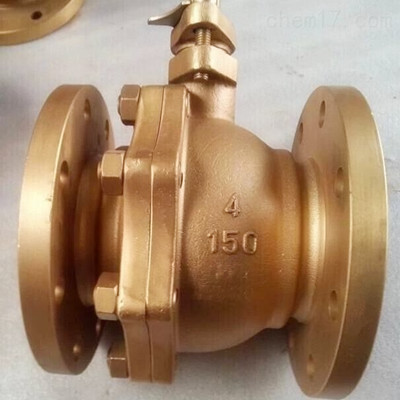

ST aluminum bronze ball valve using jacket structure, the main alloy elements for nickel, iron and manganese;
In practice, in order to meet different needs, a certain amount of manganese, iron, nickel, zinc and other elements are often added to aluminum bronze to change the properties of the alloy.
With excellent corrosion resistance, it is an important material for ship propellers and underwater fasteners, and has been widely used in seawater desalination engineering.
Structural Features:
1、ST aluminum bronze ball valve has sort seal and hard seal sturcture
2、There are two forms,full diameter and half diameter
3、have fire prevetion,anti-static device
4、The stem is designed to prevent blowout from the valve body due to improper operation

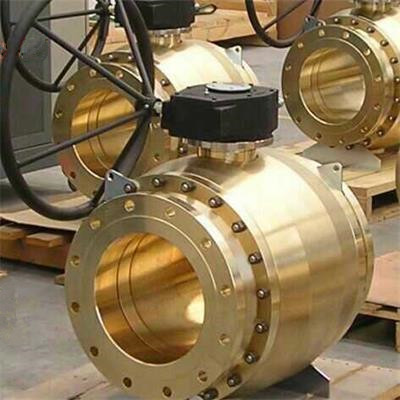

5、Can support a variety of driving device connection disk.The driving device includes:handle,worm wheel,electric,gas-liquid linkage,elecrtro-hydraulic linkage,etc
6、Buried design,buried installation of the valve,vave stem according to the needs of the project extension,so as to operation on the ground.
Design specification:
Design criteria:API 6D、GB/T 19672、GB/T 12237
Structure length:API 6D、ASME B16.10、GB/T 12221
connection standard:ASME B16.5、ASME B16.47、GB/T 9113、JB/T 79、HG/T 20592
For welding connection standard:ASME B16.25、GB/T 12234
Fire protection requirements:API 6FA、API 607
Pressure test:API 6D、API 598、GB/T 13927、GB/T 26480
Performance parameters:
Body material:aluminum bronze
Norminal size:NPS 2"~NPS 12" DN50~DN300
Pressure range:Class150~Class2500 PN10~PN420
Operating temperature:-29℃~+300℃
Application:petroleum、coal chemical industry、rubber、paper making、pharmaceutical and other pipelines
