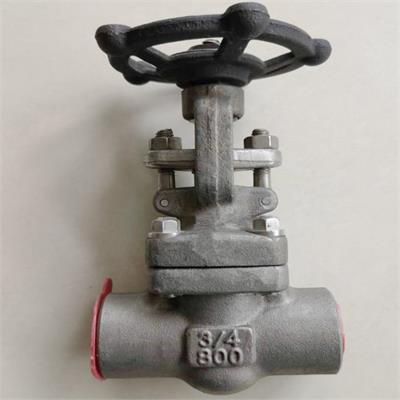

ST forged gate valve is made of high quality material with strong bearing capacity, higher plasticity and toughness than steel casting.Forged steel gate valves generally have diameters no more than DN80 and are mostly designed with reduced diameter. Compared with cast steel gate valves of the same caliber, the flow rate is slightly lower, but the pressure and temperature range is higher than that of cast steel gate valves. The sealing performance is firmer than cast steel gate valves and the service life is longer.
Structural features:

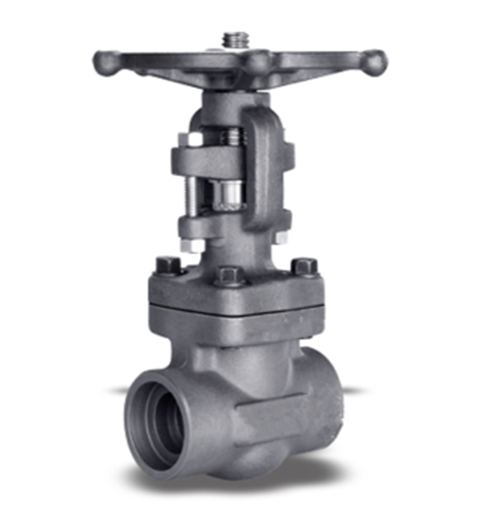

1. The main component is forging, and the middle cavity has three types: bolted bonnet, welded bonnet, and pressure self-tightening seal structure
2. Bolted bonnet means that the valve body is connected with the bonnet with bolts and nuts and sealed with wound gasket (made of flexible graphite with stainless steel wire clip).Metal rings can be used as required by customers
3, welding type valve cover means the valve body and valve cover with thread connection, fully welded seal.Fully welded connection is available upon request

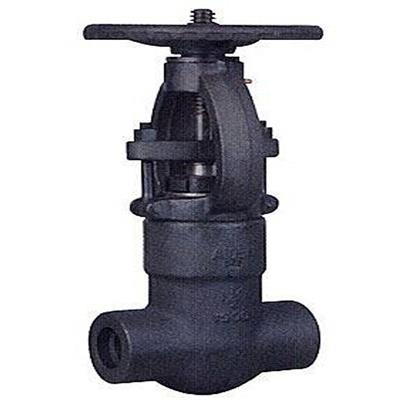

4. 900lb, 1500lb and 2500lb cavities adopt pressure self-tightening sealing structure, the sealing performance increases with the increase of internal pressure, and the reliability is high
5, smooth channel, small flow coefficient, sealing surface by medium erosion and erosion
6. The sealing surface is made of alloy steel or hard alloy with good abrasion resistance and abrasion resistance
7, the use of flexible graphite packing, reliable sealing, light and flexible operation
Design specification:
Design standard: API 602/BS 5352
Structural length: socket weld/threaded end forged steel gate valves structural length according to factory standard

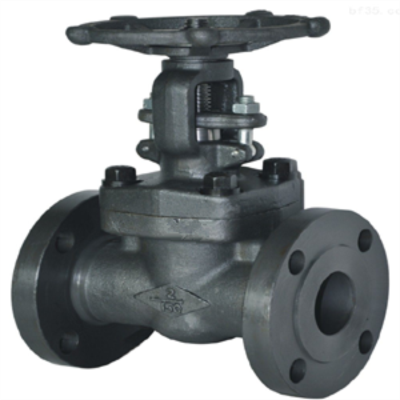

Flange/butt weld end: ASME B16.10
Connection standard: ASME B16.11, ASME B1.20.1, ASME B16.5, ASME B16.25
Wall thickness standard: API 602
Pressure test: API 602/API 598
Pressure and temperature rating: ASME B16.34
Performance parameters:
Main material: carbon steel, stainless steel, alloy steel
Nominal size: NPS 1/4"~NPS 3" DN6~DN80
Pressure range: CL150~CL2500 PN10~PN420
Operating temperature: -196℃~+600℃
Application: tap water, sewage, construction, petroleum, chemical, food, medicine, light textile, electric power, ship, metallurgy, energy system, etc
